Model No: TW-700

TW-700 Multi coin acceptor manual

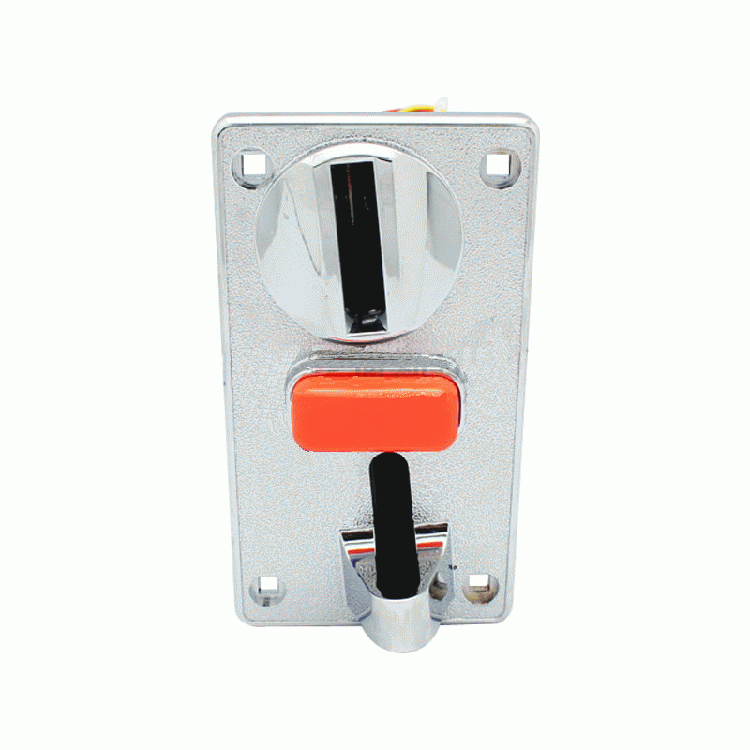

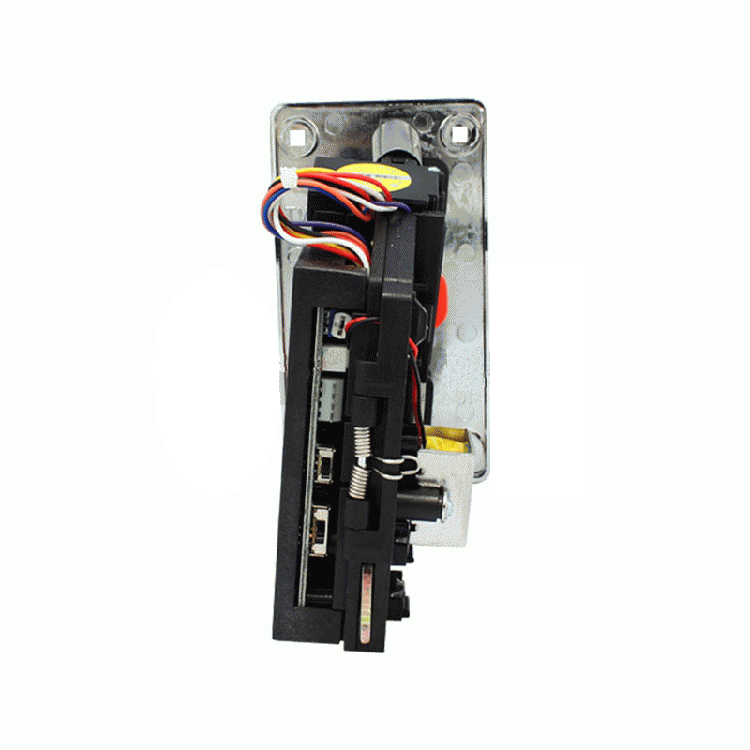

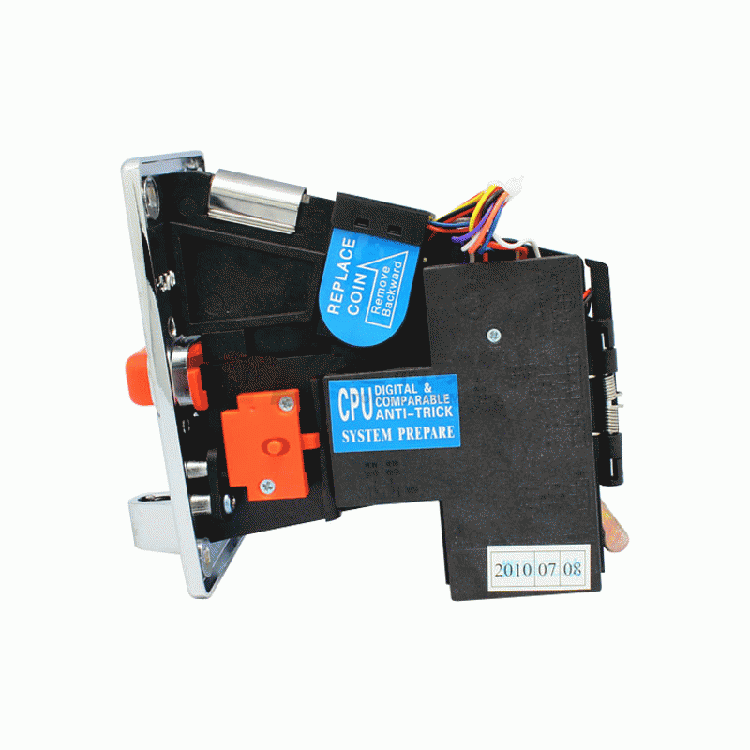

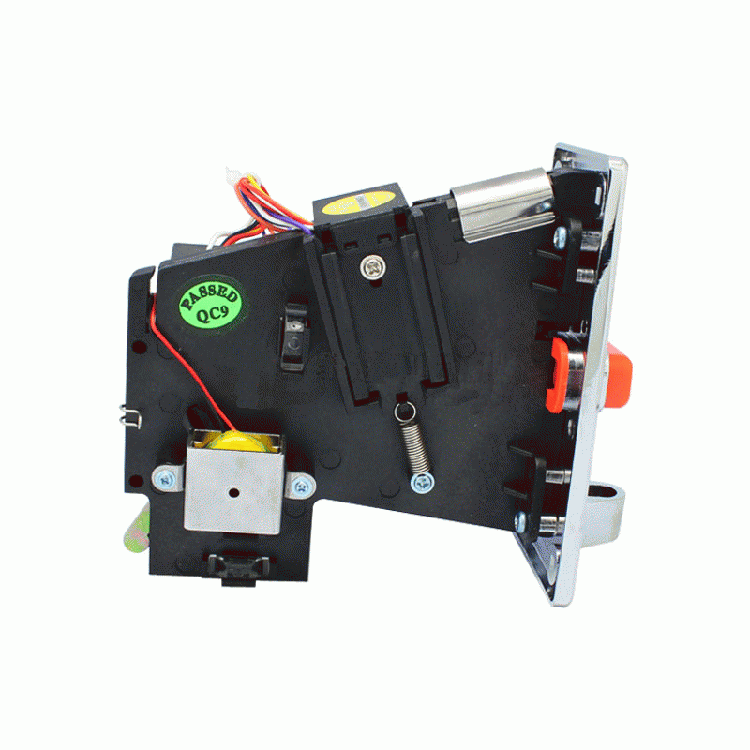

The TW-700 Multi Coin Acceptor is a multi-functional device that is commonly used in vending machines, arcade games, and other forms of coin-operated equipment.

Delivery :

FOB

minimum order :

10 pieces

Supply Ability :

100000pieces / Day

Stock Time :

Shipped in 5 days after paymentDay

Country of Origin :

Guangzhou

Quantity :

USD6.50 - USD35.00 / pieces

add to cart

Contact Now

Instruction for installing and usage of TW-700 typ coin acceptor :

Features of coin acceptor:

Diameter of the coin	22mm~30mm
Thickness of the coin	1.7mm~2.8mm
Working voltage,current	12V~60mA
Working temperature	-15℃~+50℃
Weight of each coin acceptor	O.C(open collector) type
Package	30PCS/BOX
GW of one carton	15KG
Carton Size	473727.5CM

TW-700 Technical Specifications

Intelligent CPU software control, and high accuracy
Self-programming without PC, Automatic self-test for problems
Free to set up pulses output
Prevent not only electric shock but also electromagnetic interference

Specifications

Coin diameter --15mm~32mm Atmospheric pressure-- 86Kpa—106Kpa

Coin thickness--1.2mm~3.8mm Working humidity--≤95%

Working voltage --DC +12V ±10% Speed--≤0.6s

Working current --65mA ±5% Accuracy rate of identification--99.5%

Features

1.Suit for all kinds of coins.
2.PU system identify the coin's material, thickness and diameter.
3.Special design for unti-electromagnetism interference.
4.Easy for installation
5.Self-check after power on, striring alarming.
6.Precise/normal switch, coin pass fluently.
7.The back panel can open,convenient for cleaning and jammed coin.
8.Wide coin circuit,suit for foreign market.
