Model No: JY-926
JY-926 vending machine arcade machine coin acceptor
The JY-926 vending machine coin acceptor is the go-to choice for businesses seeking a dependable and adaptable coin acceptor for their vending machines or other coin-operated gadgets.
Delivery :
FOB
minimum order :
10 pieces
Supply Ability :
100000pieces / Day
Stock Time :
Shipped in 5 days after paymentDay
Country of Origin :
Guangzhou
Quantity :
USD6.50 - USD35.00 / pieces
Instruction for installing and usage of JY-926 typ coin acceptor :
Features of coin acceptor:
| Accept coin number | the same tine accpet 6 different coin |
| Diameter of the coin | 15mm~29mm |
| Thichkness of the coin | 1.2mm~3.0mm |
| Working current | 65aA±10% |
| Working voltage | DC+12V±10% |
| Working temperature | -15℃~+75℃ |
| Coin signal output | NO,NC |
| Recognise speed | ≤0.6 second |
| Autmosphric pressure | 86Kpa-106Kpa |
| Recognition ability | 99.50% |
| Weight | 0.37KG |
| Material | Plastic panel |
| Warranty pericd | 1 year |
JY-926 Technical Specifications
Capable of accepting upto 6 types of all worldwide Coins and Tokens.
Intelligent CPU software control, and high accuracy
Self-programming without PC, Automatic self-test for problems
Free to set up pulses output
Prevent not only electric shock but also electromagnetic interference
JY926 is a multi coin acceptor , can accept up to 6 kinds of different coins at the same time. This type of
coin selector is widely used in Vending machine , Arcade Game , Message chair , and other self–
management system. JY926A is mainly based on material , weight and size to identify coins. We use the
most up to date algorithm to design software , therefore JY926A is very stable and accurate even when
environment changes . such as temperature , humidity etc… In order to increase the accuracy , we
suggest different version of coins use different channel to set up.
Specifications
Coin diameter --15mm~32mm Atmospheric pressure-- 86Kpa—106Kpa
Coin thickness--1.2mm~3.8mm Working humidity--≤95%
Working voltage --DC +12V ±10% Speed--≤0.6s
Working current --65mA ±5% Accuracy rate of identification--99.5%
Features
1. Capable of accepting all worldwide Coins and Tokens.
2. Intelligent CPU software control, and high accuracy .
3. Self-programming without PC.
4. Accept 1~6 different kind of coins at the same time.
5. Free to set up pulses' output.
6. Prevent not only electric shock but also electromagnetic interference.
7. Automatic self-test for problems.
Procedure for altering the numerical value of the interior：
Pressing the ADD key (10) and MINUS key (11)on the display panel at the same time for about 2 seconds, you will see the letter A on the dispaly panel,(When the file A/B turn to A)and at this time you can set up the numerical value of the interior.
1. Pressing the setting key(8),and then you will see the letter E, (choosing several currency system ),after that you can press the ADD key or MINUS key to increase or decrease the numerical value. After setting up, please press the setting key to confirm.
2. Appearing the letter H (the quantity of sampling for various currency value)
3. Appearing the letter P (the numberial value for signal output of various currency value)
4. Appearing the letter F (the precision of various currency value)
5. By parity of reasoning, setting is finished with your chosen currency. When the letter E is shown, please turn off the power and it will reopen again.
P.S. E：Choosing several currency value.(1 -6 )
H：Quantity of sampling for various currency value.(1 - 20 pieces).
P：The numberial value for signal output of various currency value.（1-50）
F：The precision of various currency value.（1-20, the smaller the number is,the more accurate the precision is. (Suggesting number is 8）
Setting key: SET Confirming key
ADD：Numberial value “+” A←→B Can be set two at the same time
MINUS：Numberial value“-” The currency value of different countries

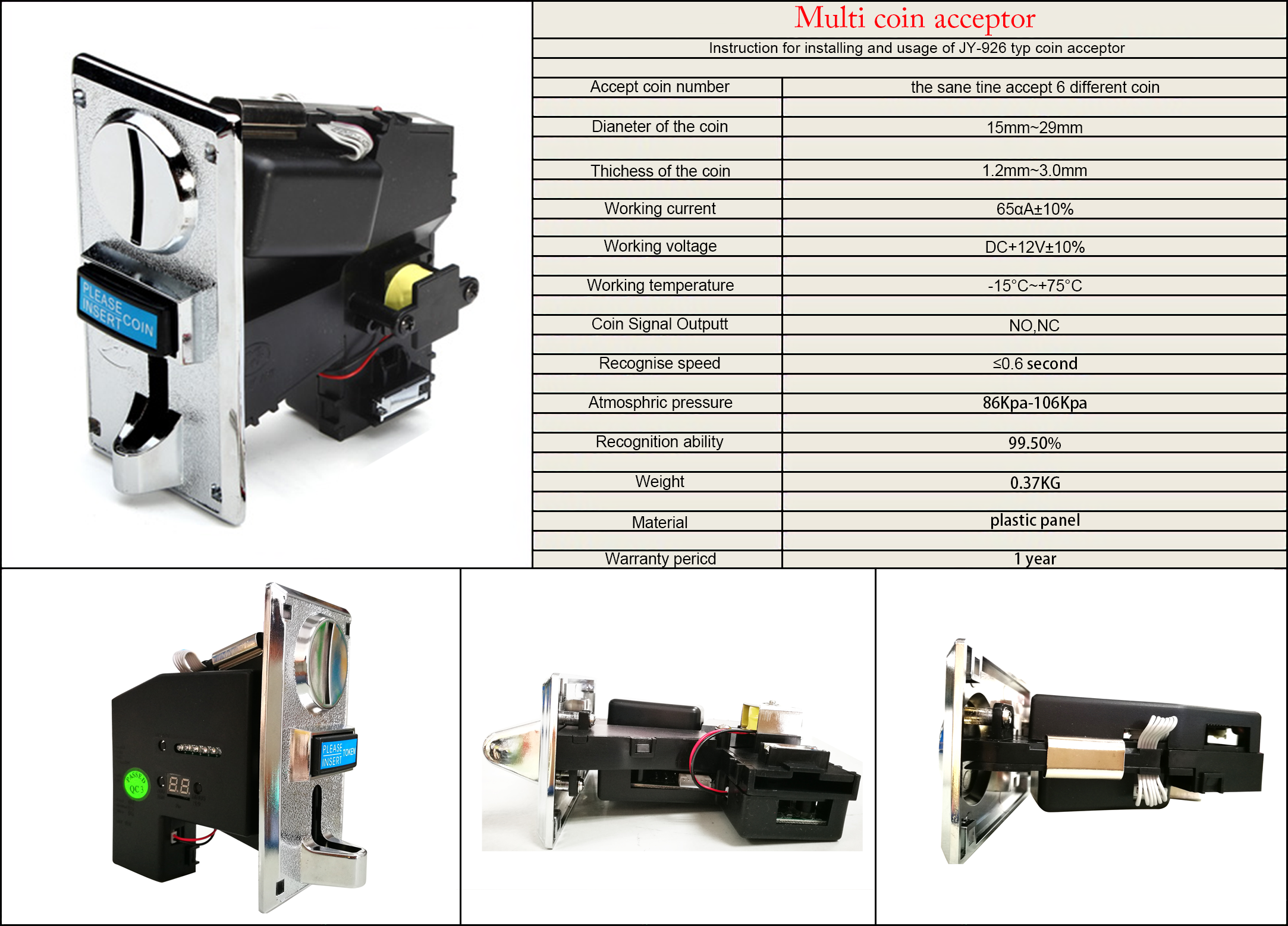

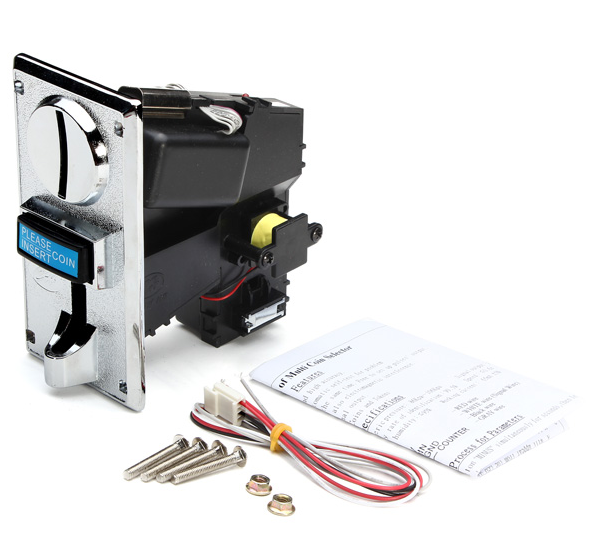

Picture of JY-926 coin acceptor:
