Model No: TW-850
Game machine bill acceptor Type TW-850 multi coin acceptor
The TW-850 multi-coin acceptor is an advanced device packed with a multitude of features, making it an excellent choice for various applications.
Delivery :
FOB
minimum order :
10 pieces
Supply Ability :
100000pieces / Day
Stock Time :
Shipped in 5 days after paymentDay
Country of Origin :
Guangzhou
Quantity :
USD6.50 - USD35.00
/ pieces
Instruction for installing and usage of TW-850 typ coin acceptor :
Features of coin acceptor:
Accept coin number | accpet different coin |
Diameter of the coin | 55mm~28mm |
Thichkness of the coin | 1.7mm~2.3mm |
Working current | 65aA±10% |
Working voltage | DC+12V±10% |
Working temperature | -15℃~+75℃ |
Coin signal output | NO,NC |
Recognise speed | ≤0.6 second |
Autmosphric pressure | 86Kpa-106Kpa |
Recognition ability | 99.50% |
Weight | 0.65KG |
Material | Plastic panel |
Warranty pericd | 1 year |
Characteristic of coin acceptor:
1.Multi coin acceptor, up to 5 groups’ settings..
2.Digital setting and display (Balance and coin value).
3.Power on self test function and digital display fault codes.
4.Memory storage function, a memory is never lost.
5.Inhibit function, easy control and free switch.
6.Dual-core processing chip, strong recognition, anti- counterfeit coin, correct scoring.
7. Ratio adjustment function, can adjust between one coin multi points or multi coins one point (Ratio up to 99:1).
8.Special precision/coin time switch (LED display), inserting coins more smoothly, high compatibility.
2.Digital setting and display (Balance and coin value).
3.Power on self test function and digital display fault codes.
4.Memory storage function, a memory is never lost.
5.Inhibit function, easy control and free switch.
6.Dual-core processing chip, strong recognition, anti- counterfeit coin, correct scoring.
7. Ratio adjustment function, can adjust between one coin multi points or multi coins one point (Ratio up to 99:1).
8.Special precision/coin time switch (LED display), inserting coins more smoothly, high compatibility.

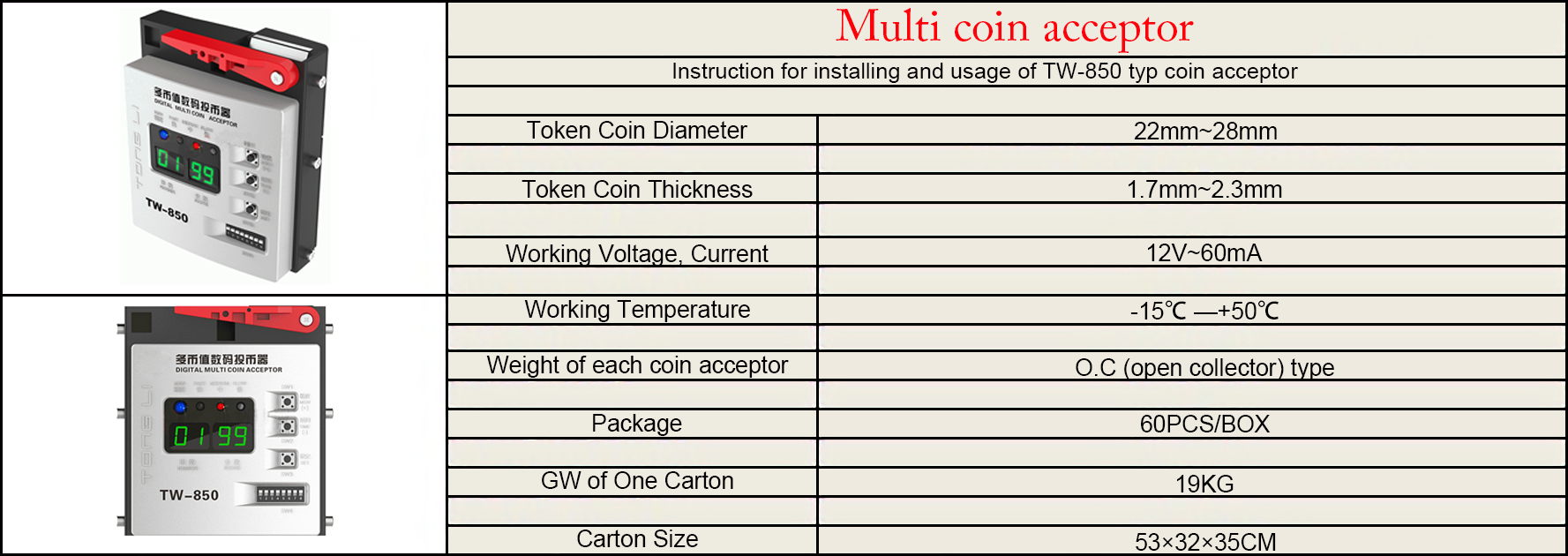

Name | coin acceptor |
Temperature | -15℃ —+50℃ |
Coin Thickness | 1.7mm-2.3mm |
Coin Diameter | 22mm-28mm |
Coin Sigal Output | O.C |
Voltage | DC+12V ±10% |
Quiescent Current | 60 mA±5% |
TW-850 Technical Specifications
- Power supply: DC +12V +/- 20%
- Static current: ≤65mA
- Operating current: ≤310mA
- Operating temperature: -20°C to +70°C
- Storage temperature: -30°C to +80°C
- Humidity: 95% max
- Acceptance speed: ≤20 coins per second
- Supported coins: up to 6 different types
- Operating voltage: DC +12V
- Output pulse width: min. 25ms
- Communication interface: parallel or serial
- Dimensions: 120 x 155 x 50mm (L x W x H)
- Net weight: 0.65kg
TW-850 coin acceptor is a highly advanced device that is designed to provide reliable and efficient coin validation features. Its technical specifications ensure maximum compatibility and flexibility with different machines and systems that require coin acceptance.
What type of interface does the TW-850 Coin Acceptor use for communication with other devices or machines?
The TW-850 Coin Acceptor can communicate with other devices or machines via two different interfaces: parallel or serial.
The parallel interface is widely used in different industries and devices. It allows for fast data transfer speeds and is often a preferred choice for applications that require quick response times.
The serial interface, on the other hand, provides a more flexible and standardized method of communication between devices or machines, allowing for the transmission of data point-to-point or through networks.
Either interface can be used with the TW-850 Coin Acceptor, depending on the specific needs of the user. The parallel interface is usually the default setting, but it can be easily switched to the serial interface by changing the configuration settings using the device's user-friendly menu.
The TW-850 Coin Acceptor is a versatile device that can integrate with different machines or systems through the two available interfaces, providing a high level of compatibility and flexibility.
The parallel interface is widely used in different industries and devices. It allows for fast data transfer speeds and is often a preferred choice for applications that require quick response times.
The serial interface, on the other hand, provides a more flexible and standardized method of communication between devices or machines, allowing for the transmission of data point-to-point or through networks.
Either interface can be used with the TW-850 Coin Acceptor, depending on the specific needs of the user. The parallel interface is usually the default setting, but it can be easily switched to the serial interface by changing the configuration settings using the device's user-friendly menu.
The TW-850 Coin Acceptor is a versatile device that can integrate with different machines or systems through the two available interfaces, providing a high level of compatibility and flexibility.

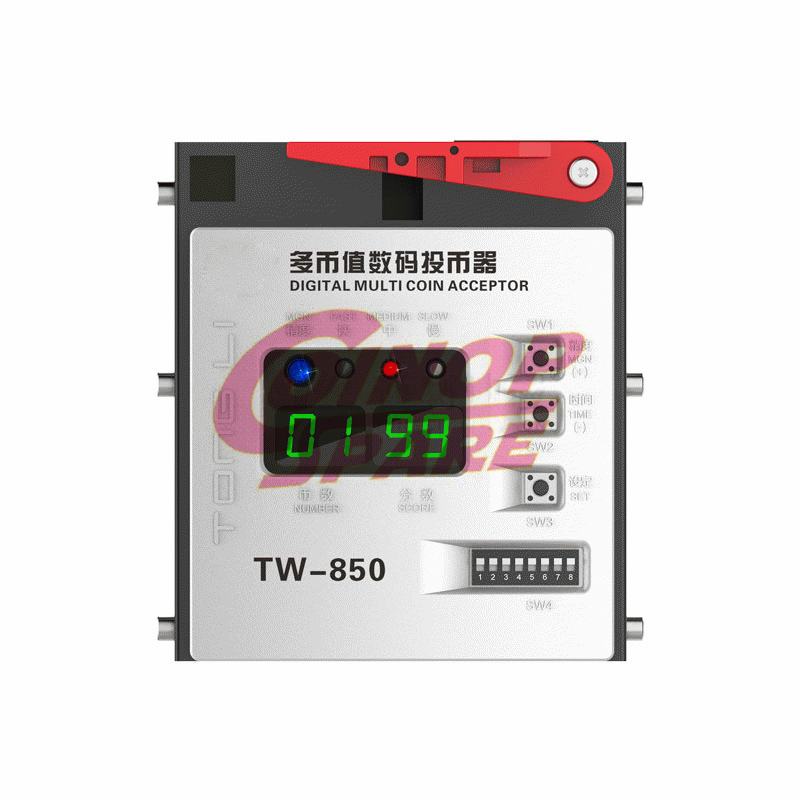

Pictures of the coin acceptor:
